Learn Electronics: Flashing an LED with a 555 Timer on a Breadboard (Astable Mode)

Designing a flashing LED circuit is a classic project, perfect for beginners and enjoyable for seasoned hobbyists. We’ll use a 555 timer IC in astable mode for this purpose. The 555 timer is a versatile chip that can be used for timing and oscillation purposes. Here’s how you can build a flashing LED circuit on a breadboard:

If you do not have a breadboard then you can find a kit on Amazon here:

Components Needed:

  1. 555 Timer IC: This will be the heart of your circuit.
  2. LED: Any standard LED will do.
  3. Resistors: We’ll need two for the timing part (let’s say R1 and R2, in this example 1K each) and one to limit the current to the LED, I used 330 ohms.
  4. Capacitor: For the timing part of the circuit (C1, I used 100uF).
  5. Breadboard and connecting wires: For assembling the circuit.

Circuit Design:

  1. 555 Timer Configuration: Place the 555 timer IC on the breadboard.
  2. LED Connection: Connect the anode of the LED (the longer leg) to pin 3 (output) of the 555 timer. Connect the cathode (shorter leg) to a resistor (let’s say 330 ohms) to limit the current, and then connect the other end of the resistor to the ground rail on the breadboard.
  3. Timing Components:
    • Connect R1 between pin 7 (discharge) and Vcc.
    • Connect R2 between pin 7 and pin 6 (threshold).
    • Connect C1 between pin 2 and ground. (If using a polarised capacitor as I have, connect the leg marked – to ground.)
    • Connect pin 2 and pin 6 together.
    • Connect pin 4 and pin 8 together.
  4. Power and Ground: Connect Vcc (pin 8) to your power supply (like a 9V battery) and pin 1 (ground) to the negative rail of the breadboard.

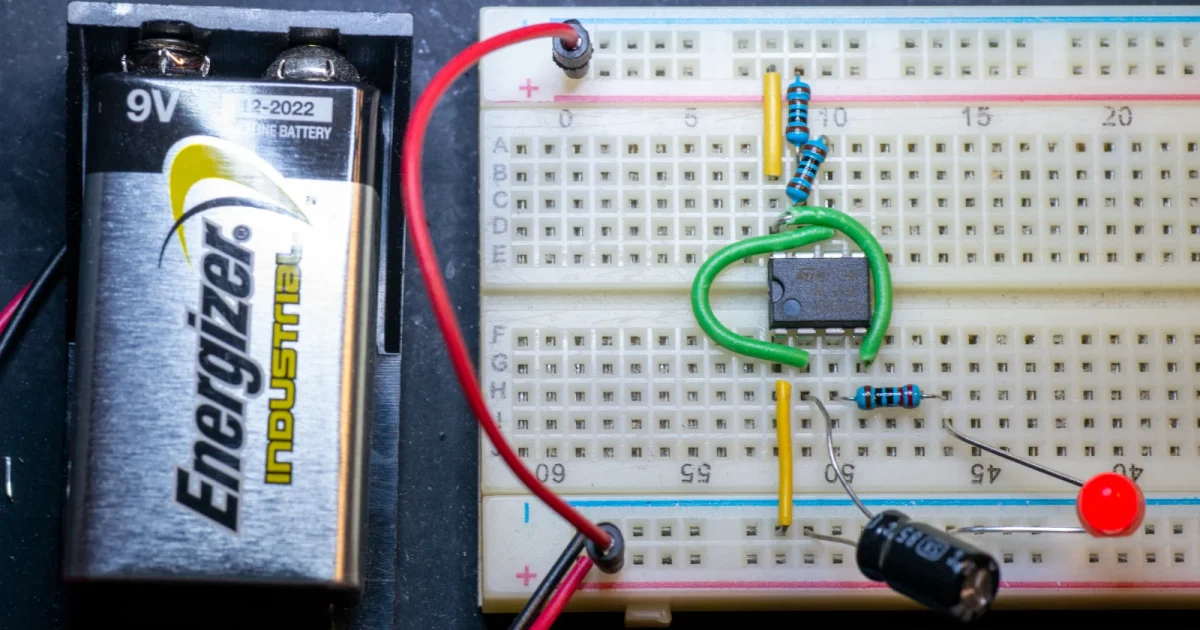

It is easier to show you than describe the circuit. Use the picture of the circuit I built to guide you.

Mathematical Calculations:

The flashing rate of the LED is determined by R1, R2, and C1. The frequency of the flashing is given by:

And the duty cycle, which is the percentage of time the LED is on during each cycle, is given by:

You can adjust R1, R2, and C1 to change the flashing rate and duty cycle. A common starting point is R1 = 1kΩ, R2 = 1kΩ, and C1 = 100µF.

So substituting values for frequency we get:

$$f = \frac{1.44}{(1\,k\Omega + 2 \times 1\,k\Omega) \times 100\mu F}$$

Simplifying the equation:

$$f = \frac{1.44}{(3\,k\Omega) \times 100\mu F}$$

Converting kΩ to Ω and µF to F (where 1kΩ = 1000Ω and 1µF = 1×10^-6 F):

$$f = \frac{1.44}{(3000\,\Omega) \times 100 \times 10^{-6}\,F}$$

Now, performing the calculation:

$$f = \frac{1.44}{0.3}$$

$$f = 4.8\,Hz$$

So, the frequency of the flashing LED with these component values is approximately 4.8 Hz, which means the LED will flash about 4.8 times per second.

And now for the Duty Cycle:

$$\text{Duty Cycle} = \frac{(R1 + R2)}{(R1 + 2 \times R2)} \times 100\%$$

Substituting R1 = 1kΩ and R2 = 1kΩ into the formula:

$$\text{Duty Cycle} = \frac{(1\,k\Omega + 1\,k\Omega)}{(1\,k\Omega + 2 \times 1\,k\Omega)} \times 100\%$$

Simplifying the equation:

$$\text{Duty Cycle} = \frac{2\,k\Omega}{3\,k\Omega} \times 100\%$$

Finally, performing the division and converting to percentage:

$$\text{Duty Cycle} = \frac{2}{3} \times 100\%$$

$$\text{Duty Cycle} \approx 66.67\%$$

So, every cycle the LED is on 66.67% of the time and flashes approximately 4.8 times a second.

Did it work out that way for you?

Assembly Tips:

  • Ensure that the 555 timer is placed in the correct orientation. The notch or dot on the IC indicates pin 1.
  • Use a breadboard and jumper wires for an easy and solder-free assembly.
  • Double-check all connections according to the pinout of the 555 timer.

This setup should give you a nice flashing LED. You can experiment with different values of R1, R2, and C1 to see how it affects the flashing rate and duty cycle.

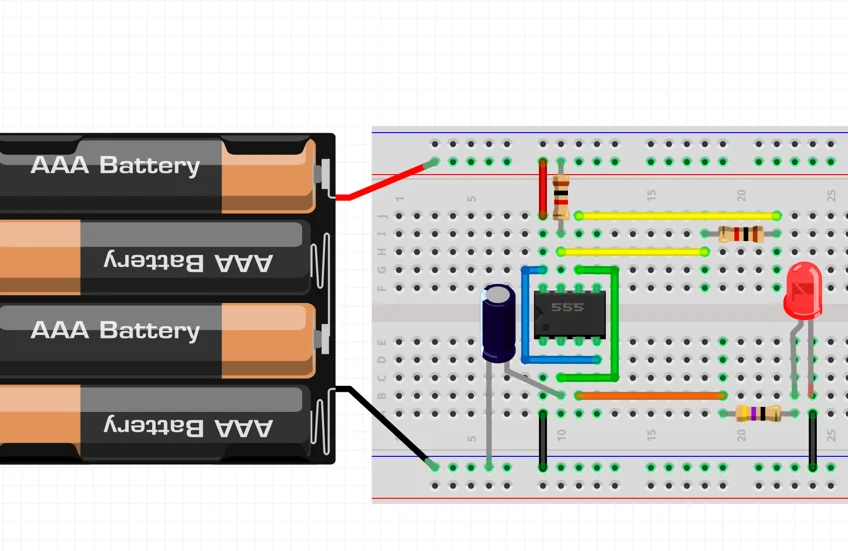

Drawn like this should help you to replicate the circuit on your own breadboard.
